The new Xhorse Key Tool Max Pro, the latest universal remote generator, brings advanced performance with expanded immo programming capability. The new Key Tool Max Pro is an upgrade to the existing Key Tool Max that combines functions of Key Tool Max and Mini OBD Module for programming together with integrated CANFD for GM vehicles and battery voltage measurement.

Features:

• Immo Programming
• Vehicle Maintenance
• Remote Leakage Detection
• Remote battery Voltage Detection
• Generate Remote and Smart key
• Program and Clone IMMO Transponder
• Generate Special Transponder
• Renew Remote
• Recognize and Clone Access Card
• Generate and Clone Garage Remote
• Frequency Detection and Clone Remote
• Connect to Xhorse Key Cutting Machine

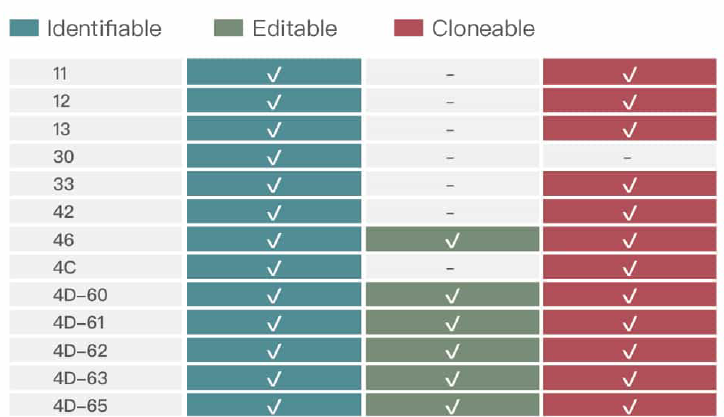

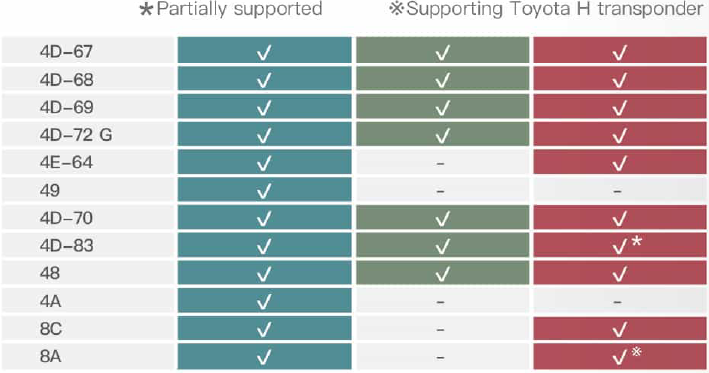

Transponder Identification & Clone:

• Supports transponder identification of most immobilizer transponders in market
• Supports editing and copy of most common transponders
• Supports ID46, ID48(96bits), and Toyota 8A/H transponder online calculation

Generate Transponder:

• Generate immobilizer transponders for over 850 car models of 80 makes worldwide.
• Generate immobilizer transponders and write immobilizer data, especially for some special car models, old car models, etc.

lmmo Programming:

• Supports immo programming for thousands of popular car models.
• Supports CANFD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc.

Powerful TPMS Functions:

• Support XTPMS programming, up to 20 sensors simultaneously
• Reprogram XTPMS sensor
• Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
• Copy and change sensor ID
• Read TPMS data like tire pressure, temperature, battery, etc.
• Support OBD reading, writing, read & clear DTCs
• Compatible with multiple car models, support for more models coming soon

Battery Test Module:
Connect KEY TOOL MAX PRO to the leakage detection cable (included with purchase) to test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).

Remote Clone:
Supports HCS/Fixed code cloning, non-HCS rolling code cloning,
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

Generate Remote:
Generate remote for over 6000 vehicle remotes of 200 car brands worldwide.
Generate garage remote for over 100 models.

Frequency Detection:
Supports frequency detection within the range of 300-450MHz.

Compatible with Xhorse Key Cutting Machines:
KEY TOOL MAX PRO can be used to control Xhorse key cutting machines
via Bluetooth to finish various tasks like all key lost, find bitting, cut by
bitting etc., saving much time for its users. (Support DOLPHIN, MINI
PLUS, XC-MINI, etc.)

New Features Coming Soon:
KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models soon plus a special feature coming soon!

Technical Support:
With 'Customer Service' on Xhorse APP, you'll get live and free
technical support from a professional and dedicated team to help you tackle any problems.

Worry-free Warranty:
A one-year (365 days) warranty is offered by Xhorse from the date you purchased the product.

Specifications:

• Battery capacity 3375mAh
• Battery life > 6Hours
• Stand time > 5Days
• Brightness > 400nits
• Screen resolution 1280*720P
• Camera resolution 800W
• WiFi & Bluetooth 802. lla/b/g/n/ac & 4.2 BLE

Package Includes:
Key Tool Max Pro
OBD to D815 Cable
Remote Programming cable
USB cable
Leakage Detection cable
User manual


Compatible Chips for cloning:

Xhorse Chips: XH-4D, XH-46, XH-48, XH-SUPERCHIP

Compatible Blades for remotes:
KeyDIY Blades
